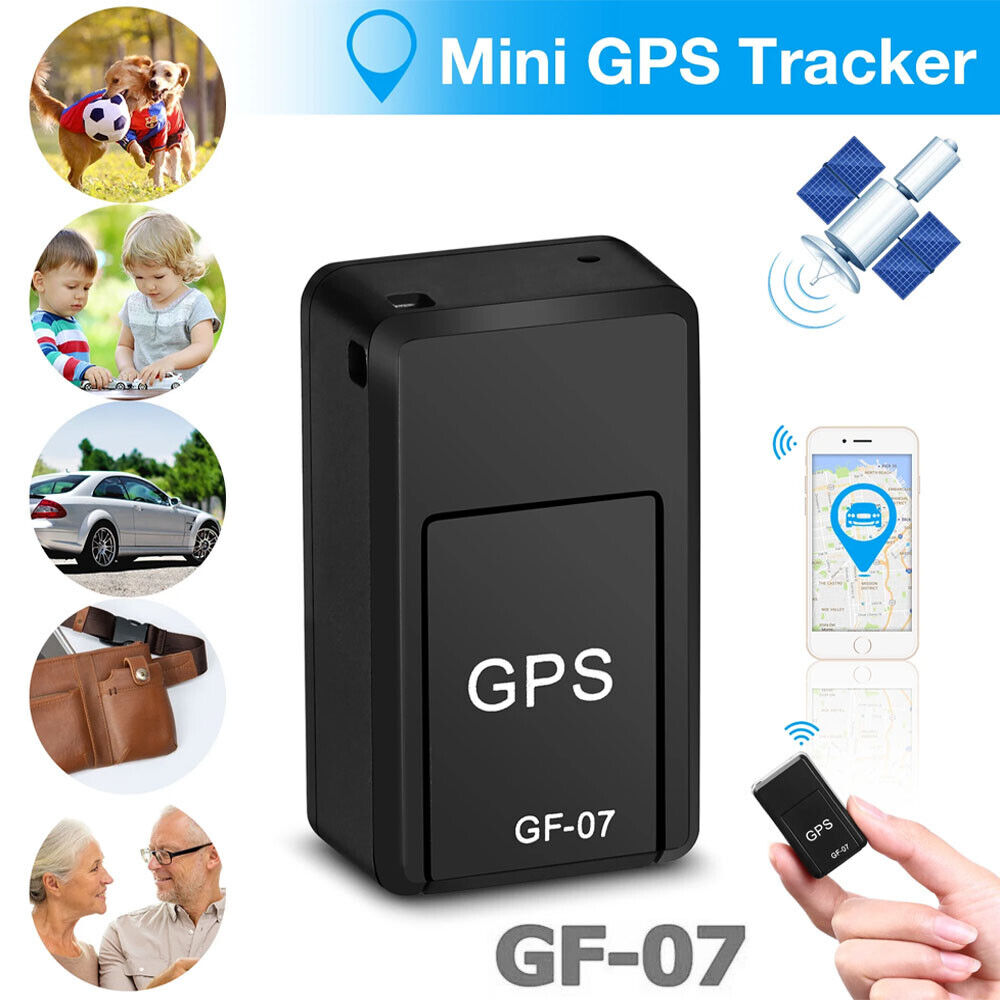

Mini GPS Tracker

Real-Time Tracking for Greater Peace of Mind

When your vehicle or valuable belongings are out of sight, knowing their location can make all the difference.This mini magnetic GPS tracker uses GPS positioning and GSM mobile networks to help you remotely check location information through a compatible SIM card and tracking system.

Unlike bulky wired trackers, its compact magnetic design requires no complicated installation.Simply attach it to a suitable metal surface and configure the device according to the included instructions.

Main Advantages

🧲 Magnetic Mount – Built-in magnets allow quick placement on suitable metal surfaces without vehicle wiring.
📍 GPS Positioning – Request location information remotely through supported GPS tracking functions.
📱 SMS Control – Supported SMS commands provide convenient remote access to selected functions.
🔋 Rechargeable Battery – Built-in 400mAh Li-ion battery supports USB charging.
📦 Mini Size – Compact 40 x 23 x 16 mm design takes up minimal space.
💾 TF Card Support – Supports a Mini TF card for compatible recording functions.
📶 GSM/GPRS Network – Supports 850/900/1800/1900 MHz GSM bands.

Product Specifications

· Product Name: Mini GPS Tracker
· Product Type: Magnetic GPS Tracker
· Material: Plastic housing, electronic components and built-in magnets
· Color: Black

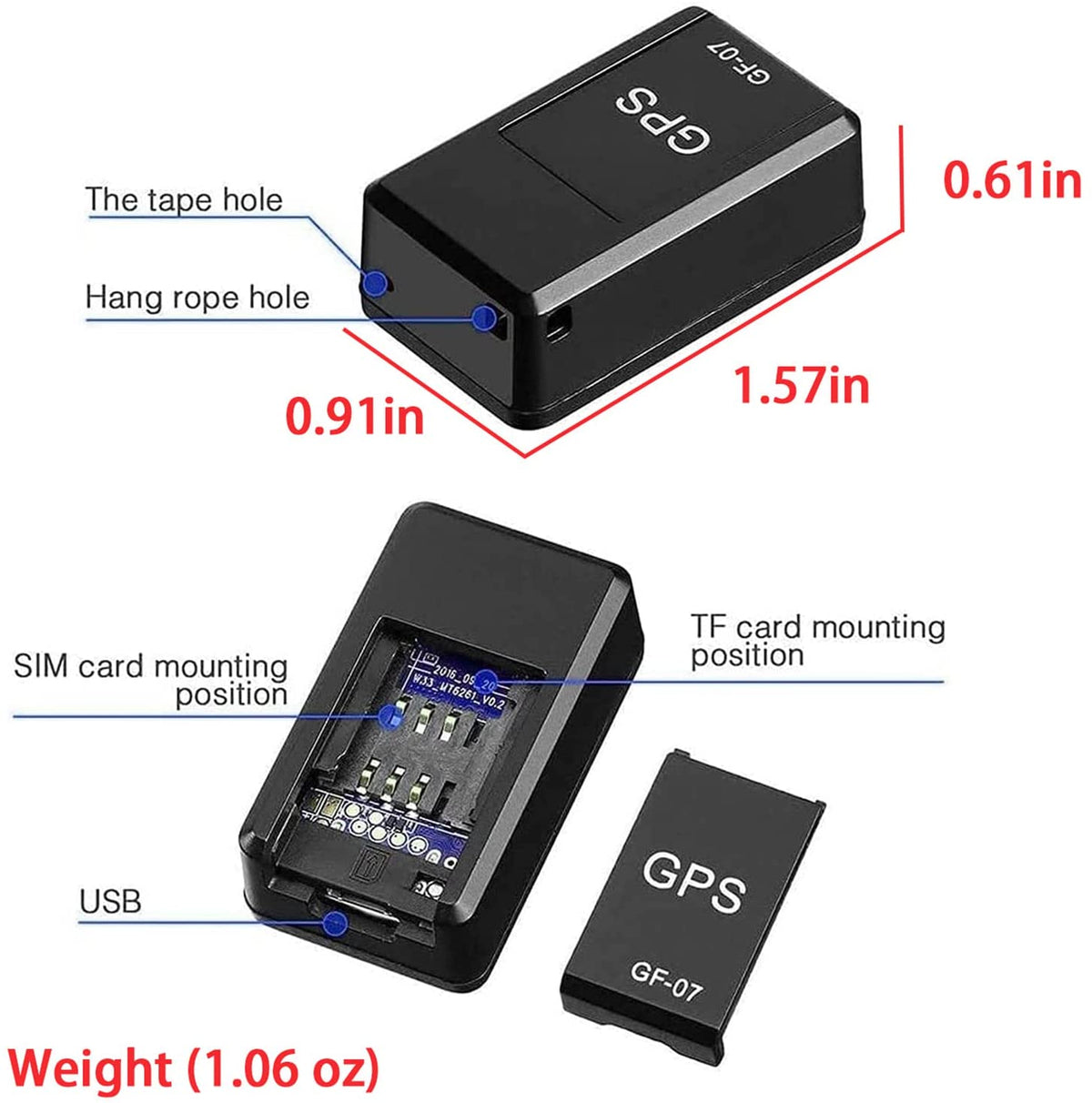

· Dimensions: 40 x 23 x 16 mm / 1.57 x 0.91 x 0.63 inches
· Weight: 1.06 oz / approximately 0.07 lb
· Battery: 3.7V 400mAh Li-ion rechargeable battery
· Power Supply: USB charging
· Operating Voltage: DC 3.4–4.2V
· Working Time: Approximately 4–6 days
· Network: GSM/GPRS
· GSM Bands: 850/900/1800/1900 MHz
· GPS Tracking Time: Approximately 20 seconds
· Memory Expansion: Mini TF card
· Location Method: GPS positioning with GSM/GPRS communication
· Input Power: AC 110–220V, 50/60Hz
· Output: DC 5V, 300–500mA
· Operating Temperature: 20–55°C / 68–131°F
· Storage Temperature: 40–85°C / 104–185°F

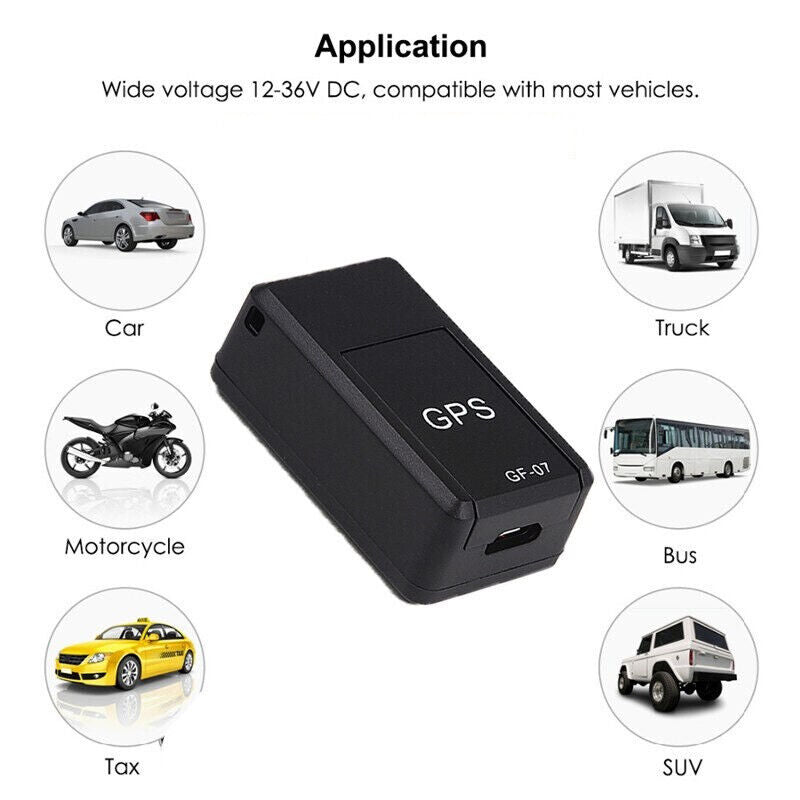

· Usage Scenarios: Cars, motorcycles, trailers, toolboxes, luggage and other suitable assets
· Suitable For: Vehicle owners and authorized asset tracking applications
· SIM Requirement: Compatible working GSM 2G SIM card required; SIM card not included
· Memory Card: Mini TF card supported; card not included

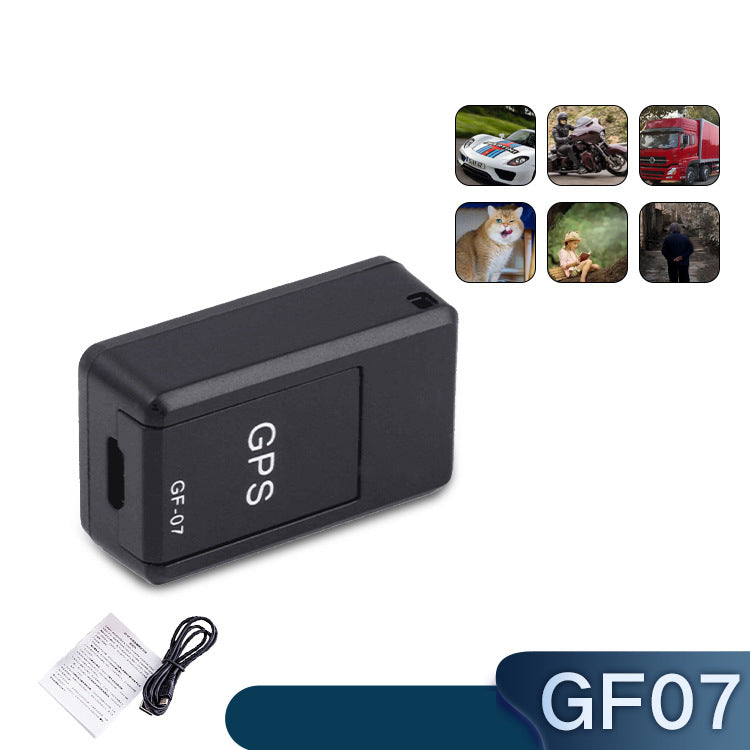

· Package Contents: 1 x Mini Magnetic GPS Tracker, 1 x USB Charging Cable, 1 x User Manual

How to Use

*Insert a working SIM card and a memory card into the tracker and track and map (with Google Maps) in real time via the internet.
*Monitor by sending text messages to the tracker.
*Send 000 to connect your phone to the GPS.
*Send 777 to get the location via a link to Google Maps.
*Send 102 to get a link (https://gpsui.net/) to download the app, as well as the username and password.
*Send 555 to stop recording. Start
*Send 666 to stop recording and enter sound sensor mode. In this mode, if the device is surrounded by a voice with a volume above 40 dB, it will call your phone.
*Send 445 to delete the TF card recording.
*Send 444 to reset the phone number.
*Send 888 to check the GPS status (battery, signal, TF card storage, etc.).
*Send 999 to restart the GPS..

Important: A compatible GSM 2G SIM card is required for normal operation. The SIM card and Mini TF card are not included. Network availability, location accuracy, battery life and available functions may vary depending on the SIM card, network coverage, usage frequency and operating environment.
